How to Build a Single Slope Shed Roof

6-minute read

Sunday, February 1, 2026

A single-slope shed roof angles from a higher wall down to a lower wall. It seems simple, but getting the pitch, overhangs, and drainage details right is what keeps the roof from leaking or sagging over time—especially in Austin storms. That’s why many homeowners lean on a shed builder in Austin for the layout and framing. Interlock Roofing defines a mono-pitched roof as a roof design with a single sloping plane, which is exactly what you’re building. Done correctly, it’s a solid, clean roof style for a shed.

Take Action

Step 1: Pick your pitch and roofing

Step 2: Build the height difference into your walls

Step 3: Lay out and cut rafters

Step 4: Install rafters and tighten the frame

Step 5: Add fascia and sheathing

Step 6: Underlayment and roofing

Want a shed built without the cut lists?

Frequently Asked Questions

Step 1: Pick your pitch and roofing

Start with pitch, because roofing material comes first. For asphalt shingles, 2:12 is commonly treated as the minimum slope for shingle installation, and lower slopes may call for additional underlayment steps. IKO explains the common minimum in its article on the minimum slope for an asphalt shingle roof.

Decide your overhang now, because it affects rafter length and fascia.

Step 2: Build the height difference into your walls

A true single slope roof needs one wall higher than the other. The cleanest DIY approach is to frame one long wall taller from the start. If your shed walls are already the same height, create slope by adding a straight, firmly attached sloped top plate on the high side.

Confirm walls are plumb and top plates are level.

Step 3: Lay out and cut rafters

Mark rafter locations on both top plates before you cut anything. Keep spacing consistent so sheathing edges land on framing, and mark the same layout on both walls so each rafter lands square.

Cut one test rafter and dry fit it on the shed, then use it as a template for the rest. Your cuts are usually a plumb cut at the high end, a birdsmouth seat where it rests on the wall, and a tail cut at the low end to form the overhang. Label your template so you do not flip it the wrong way.

Most shed rafters use a small birdsmouth cut so the rafter has a flat seat on the top plate. Take shallow cuts and keep the seat tight.

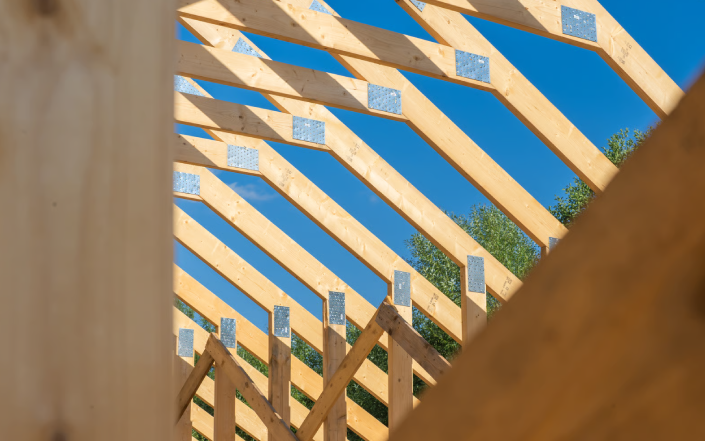

Step 4: Install rafters and tighten the frame

Install the first and last rafter, then run a string line along the top edge to keep the roof plane straight. Set the remaining rafters to the line, checking that each seat is tight on the top plate. Add blocking where needed to reduce twist and to support roof edges.

In higher wind areas, a connector at the rafter to top plate joint can help the roof framing resist uplift and side loads. Simpson Strong Tie describes this connection role in its H2.5T hurricane tie installation guide.

Step 5: Add fascia and sheathing

Install fascia at the low edge and on any overhangs so the roof has a clean finish line. Then install roof sheathing, starting at the low edge and working up the slope. Stagger panel seams and keep all panel edges supported by rafters or blocking.

Leave a small gap between panels so they can expand with moisture changes. APA recommends a 1/8 inch space at panel edges and ends and shows a simple spacing method in its article on proper panel spacing. Keep fasteners flush with the surface.

Step 6: Underlayment and roofing

Cover the roof deck with the underlayment recommended for your roofing, working from the low edge upward so each course overlaps the one below. Then install your roofing material using the product instructions for overlap, fastening, and edge details. Slow down at edges and around any penetrations, since that is where most leaks start.

Want a shed built without the cut lists?

If you would rather have one team handle design, build, and installation, Small House Solutions can help you move from a plan to a finished shed with a clear process. Visit our Shed Builder Austin page to see how we approach shed projects and schedule a consultation.

Frequently Asked Questions

1) What is the easiest way to frame a single slope shed roof?

Build one wall higher and use matching rafters across the shed. Install the first and last rafter, then use a string line to keep everything straight.

2) Can I use shingles on a single slope roof?

Often, yes. Make sure your roof has enough slope for the shingle instructions you are following, especially on lower slopes.

3) How do I keep the roof from looking wavy?

Use a test rafter, keep your layout consistent, and set rafters to a string line. Fix gaps and twist before the sheathing goes on.

4) Do I really need gaps between sheathing sheets?

Yes, small gaps help reduce buckling as panels expand and contract. Space consistently as you install each sheet.

5) What causes leaks on shed roofs most often?

Leaks usually start at edges and seams when layers are not overlapped correctly. Careful underlayment work and clean edge detailing help keep water out.
